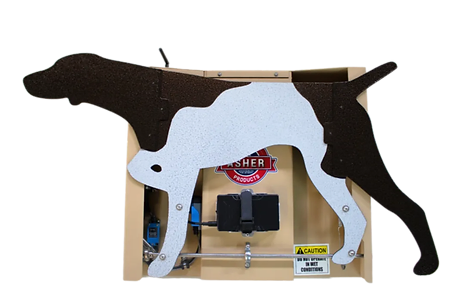

This hunting dog training tool teaches pointing dogs to stop or "back" when another dog points.
It is specifically designed to simluate a lead dog on point, making it effective for teaching your dog to honor the point while improving steadiness and obedience.
The quality aluminum design provides durability while still remaining lightweight making it a practical tool to bring along for in field training.
The easy-to-use remote control allows the raising and lowering of the dog at the push of a button.
Remote Backing Dog Instructions.
After opening the package remove all loosely packaged items from within the Backing Dog.
Give the battery a full charge with supplied DC charger. All green indicator light will illuminate when fully charged. Battery does not need removed for it to be charged.
Install the supplied antenna to its port (picture attached).
After the charging is completed remove the DC charger and plug the main feed line into the battery.
Activate the dog by powering the unit with the toggle switch on the battery.
Push the A button on the transmitter for 1 second to bring the dogs body up. It will stop on its own when vertical.
Attach the magnetic head and tail in place.
The C and D buttons are only for jogging the dog up and down and are only really used during assembly.
On the back side of the frame and next to the antenna is an oval hole. Inside that hole is a toggle switch that can raise or lower the dog without the transmitter, this is also rarely needed. If you ever have any issue with the dog not properly raising or lowering check this first to make sure it is in the center or neutral position.
For storage of the unit lower dog, turn off the battery and flip the head and tail to an inbound position.
ONE YEAR WARRANTY
Warranty: Asher Products warrants that all of its components are free from defects. Each of these products are warranted to be free of defects in material and workmanship for one year to the original purchaser. Asher Pet Products will not be liable for labor charges and other intangible or consequent losses that might be claimed as a result of the failure of any part; nor shall it be liable for damages or injury to person or property resulting from misuse or improper installation of any part subject to this warranty. The warranty part, along with proof of purchase, MUST be presented to Asher Products when making a claim for replacement. Shipping of the part to and from the manufacturer is the responsibility of the purchaser. Manufacturer maintains sole discretion in determining whether a part is under warranty, and whether it will be repaired or replaced. No other warranty, expressed or implied, including merchantability, applies to the product component, nor is any person or Asher Products authorized to assume any other warranty. Asher Pet Products does not assume responsibility for any consequential damages occasioned by the product, or inconvenience or interruption in any operation.
